Wooden Spoon Making Machine Complete Line
spoon fork making machine WOODEN SPOON MAKINGMACHINE
WOODEN FORK MAKING MACHINE
WOODEN KNIVES MAKINGMACHINE
WOODEN FORK MAKING MACHINE
WOODEN KNIVES MAKINGMACHINE
Description
Video of Wooden Spoon Making Production Line, Wood Cutlery Making Machine
RYJ-1S Wooden Spoon Hot Pressing Machine (Working Video)
Which wood can be used in wooden spoon, fork, knife making ?
The regular wood we used in making wooden product is birch wood (also called white birch), pine wood, poplar wood and other local wood species.

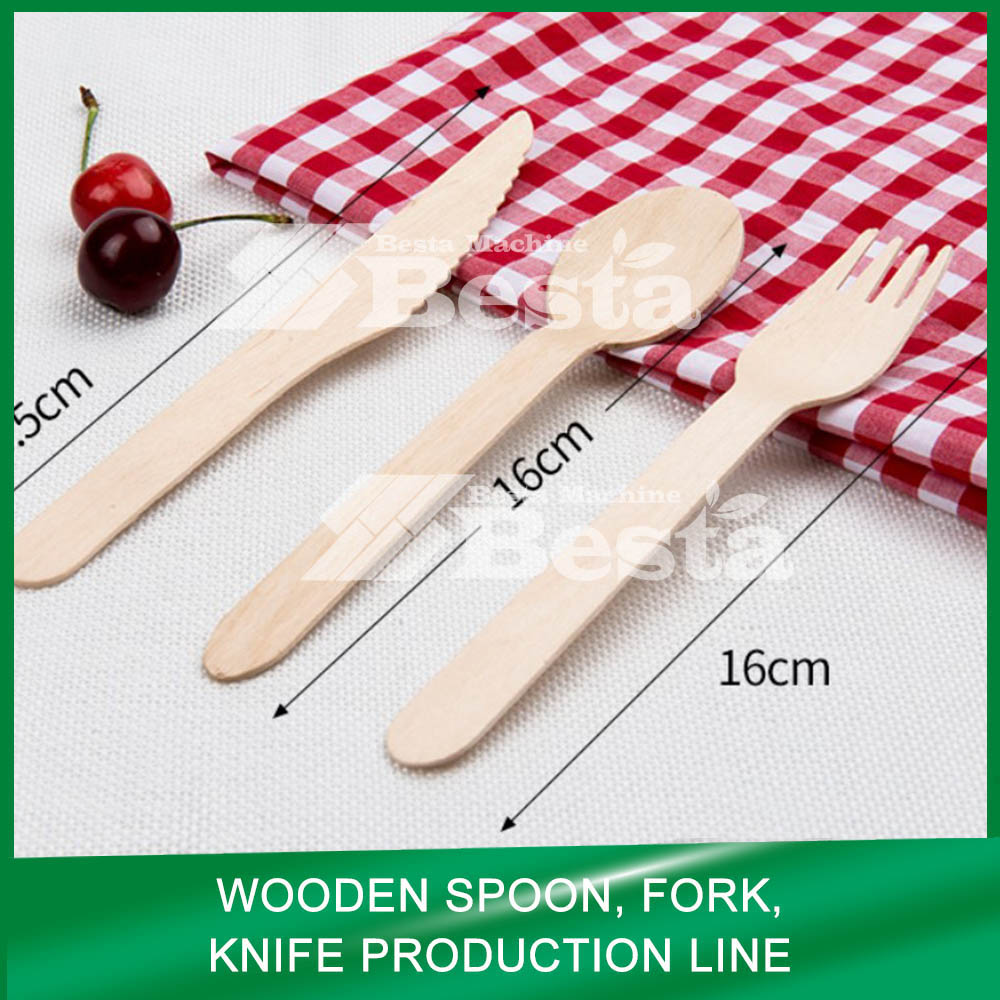

PRODUCTS MADE FROM OUR OWN MACHINES
PRODUCT SERIES
WOODEN SPOON MAKINGMACHINE
WOODEN FORK MAKING MACHINE
WOODEN KNIVES MAKINGMACHINE
WOODEN PLATE MAKING MACHINE

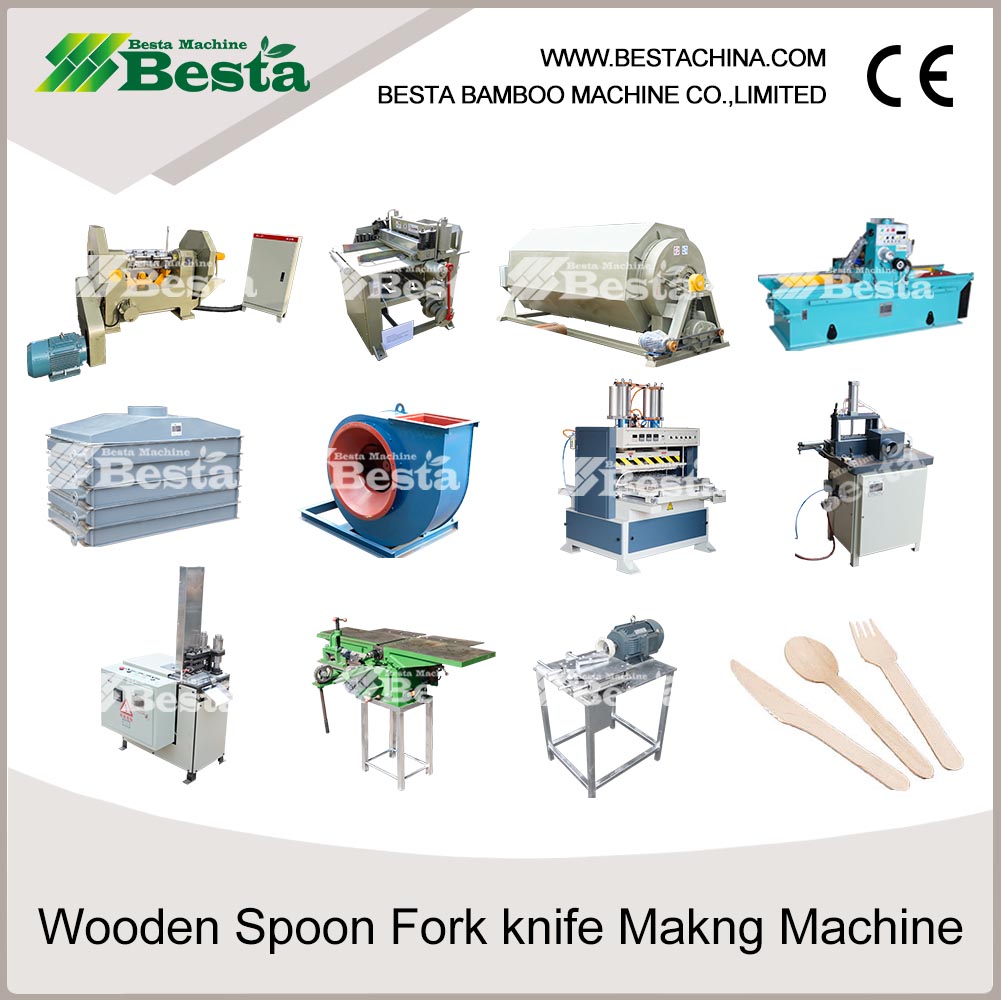

For this line, it is consisted by the following machines,
(1) L520B Wood Rotary Cutting Machine
(2) CCM-003C Carved Cutting Machine
(3) PG-6-L3 Stick Polishing Machine
(4) BSM-010 Blade Grinding Machine (Magnetism type)
(5) CBJ-1 Wooden Veneer Cutting Machine
(6) KCJ-1 Wooden Fork Teeth Shape Forming Machine
(7) RYJ-1/RYJ-1S Wooden Spoon Hot Pressing Machine
(8) RYJ-2 Wooden Plate Hot Pressing Machine
(9) LY-5 Wooden Spoon Branding Machine (Logo Printing)
BESTA BAMBOO MACHINE CO., LIMITED.
WOODEN KNIVES MAKINGMACHINE
WOODEN PLATE MAKING MACHINE
For this line, it is consisted by the following machines,
(1) L520B Wood Rotary Cutting Machine
(2) CCM-003C Carved Cutting Machine
(3) PG-6-L3 Stick Polishing Machine
(4) BSM-010 Blade Grinding Machine (Magnetism type)
(5) CBJ-1 Wooden Veneer Cutting Machine
(6) KCJ-1 Wooden Fork Teeth Shape Forming Machine
(7) RYJ-1/RYJ-1S Wooden Spoon Hot Pressing Machine
(8) RYJ-2 Wooden Plate Hot Pressing Machine
(9) LY-5 Wooden Spoon Branding Machine (Logo Printing)
BESTA BAMBOO MACHINE CO., LIMITED.

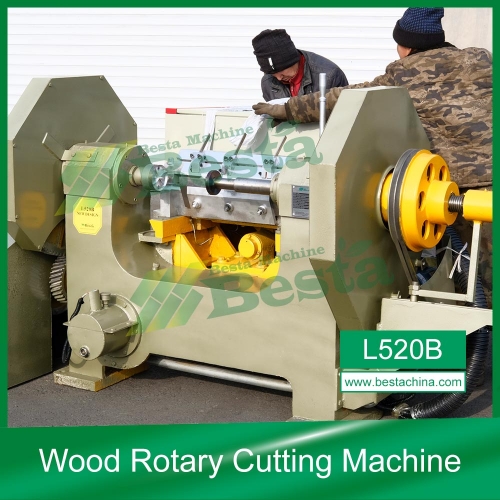

Wood Rotary Cutting Machine
Model: L520B
Name: Wood Rotary Cutting Machine
Power : 16.2 KW (380V, 50HZ)
Process Length of Wood: 480MM
Processing Thickness Range: 1 to 2.3 MM
Diameter of Wood Maximum it can process: 780mm
Rotation Speed: 240R/MIN
Machine Size: 2500*2400*1300MM
Machine Weight: 2200KGS
Name: Wood Rotary Cutting Machine
Power : 16.2 KW (380V, 50HZ)
Process Length of Wood: 480MM
Processing Thickness Range: 1 to 2.3 MM
Diameter of Wood Maximum it can process: 780mm
Rotation Speed: 240R/MIN
Machine Size: 2500*2400*1300MM
Machine Weight: 2200KGS

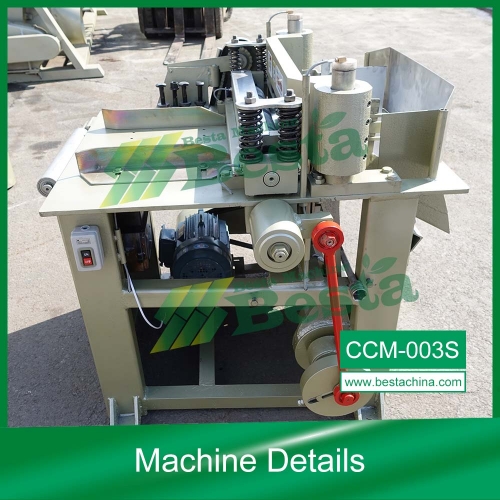

Carved Cutting Machine
Model: CCM-003S (NEW MODEL)
Power : 2.2 KW
Working Voltage: 380V,50HZ (Three phase)-Can be customerized made.
Brand: BESTA
Die Cut Thickness: 2.2 to 8.8 mm
Machine Size:1200*800*1200 MM
Machine Weigh: 550 KGS
Our machine is using Japan Needle Bearing.
The performance is 8 times better than former type.
We have two types, one is normal type and another is with FREQUENCY CONTROL.
Power : 2.2 KW
Working Voltage: 380V,50HZ (Three phase)-Can be customerized made.
Brand: BESTA
Die Cut Thickness: 2.2 to 8.8 mm
Machine Size:1200*800*1200 MM
Machine Weigh: 550 KGS
Our machine is using Japan Needle Bearing.
The performance is 8 times better than former type.
We have two types, one is normal type and another is with FREQUENCY CONTROL.
Heat Exchanger
The function of this machine is for convert the Steam into heat and then the heat (hot air)
Will be used for stick polishing process.
1 set of PG-6-L3 polishing machine shall be cooperated with 1 set of heat exchanger and draught fan.
For 1 set of heat exchanger is consisted by 5 PCS of small heat exchanger.
Each Piece Size :180*1000*1920 MM
Will be used for stick polishing process.
1 set of PG-6-L3 polishing machine shall be cooperated with 1 set of heat exchanger and draught fan.
For 1 set of heat exchanger is consisted by 5 PCS of small heat exchanger.
Each Piece Size :180*1000*1920 MM
Wooden Spoon Hot Pressing Machine
Name: Spoon Hot Pressing Machine
Function: It is used in wooden spoon shape forming.
It is the last machine for the finished product shape forming.
Model: RYJ-1S
Power:10.8 KW
Temperature:0 to 999 degree centigrade.
Pressure: 20000 KGS
Machine Size: 1800*1400*1900 MM
Machine Weight: 1300 KGS
Production Output: 7000 to 9000 PCS/Hour
Function: It is used in wooden spoon shape forming.
It is the last machine for the finished product shape forming.
Model: RYJ-1S
Power:10.8 KW
Temperature:0 to 999 degree centigrade.
Pressure: 20000 KGS
Machine Size: 1800*1400*1900 MM
Machine Weight: 1300 KGS
Production Output: 7000 to 9000 PCS/Hour
Complete Line Introduction of Wooden Spoon, fork, knife Making Machine
Wooden Spoon Hot Pressing Machine Video
L520B Wood Rotary Cutting Machine Video -WOODEN VENEER MAKING
